Tool-O-Film Rolls

TOOL-A-THANE Tool-O-Film for both steel and urethane form dies.

Advantages of TOOL-A-THANE Tool-O-Film

Eliminates scratching and marring of prefinished materials including vinyl clad, painted, stainless and others.
Helps form more accurate bend by making up for variations in metal thickness.
Aids in reduction of wear on metal to metal form die contact.
Easy installation by just laying over bottom female die.

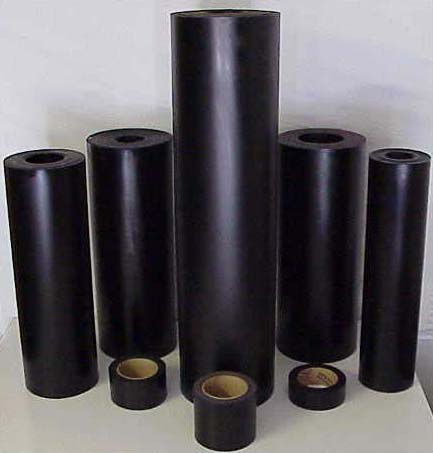

TOOL-A-THANE Urethane Tool-O-Die Film Rolls
Catalog No.     Thickness     Width     Length       Grade
 5002015          .020"         2"        50'        UT-15
 5002215          .020"         3"        50'        UT-15
 5002415          .020"         5"        50'        UT-15
 2002315          .063"        24"        90' Max    UT-15
 2012315          .125"        24"        45' Max    UT-15
 2012415          .125"        36"        45' Max    UT-15

For prices Click here: TOOL-A-THANE Tool-O-Film
