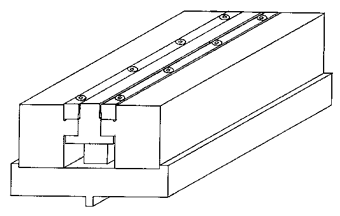

TOOL-A-THANE Urethane Wipe Up Die

Advantages of TOOL-A-THANE Urethane Wipe Up Die

Easy to make                                   Excellent accuracy
 Standard Die Design readily available          Reduced set-up time
Standard components readily available          Minimal Marring
Allows for metal thickness variations          Non Scratching

Capacities:

The standard wipe up die can be made to form up to 1/8" mild steel. UTEC can supply the complete die design using the standard wipe up die concept. This concept uses the standard rails mounted with one of three standard wiper assemblies.

TOOL-A-THANE Urethane Wipe Up Die comes complete with rails. Rails come in one foot sections with 1" x 1" x 12" UT-5 Wiper* mounted and five mounting holes provided in rails. Also, UTEC provides design assistance for standard Wipe Up Dies using standard parts.

*Can be replaced with 1/4" x 1" x 12" UT-5 Wiper assembly or 7/8" x 1" x 12" Tool Steel Wiper Assembly.

Size               Description                   Rating
1" x 1" x 12"      UT-5 Wiper Assembly           16 ga.
1/4" x 1" x 12"    UT-5 Wiper Assembly           20 ga.
         7/8" x 1" x 12"    Tool Steel Wiper Assembly     1/8" mild steel

For prices Click here: TOOL-A-THANE Urethane Wipe Up Die
