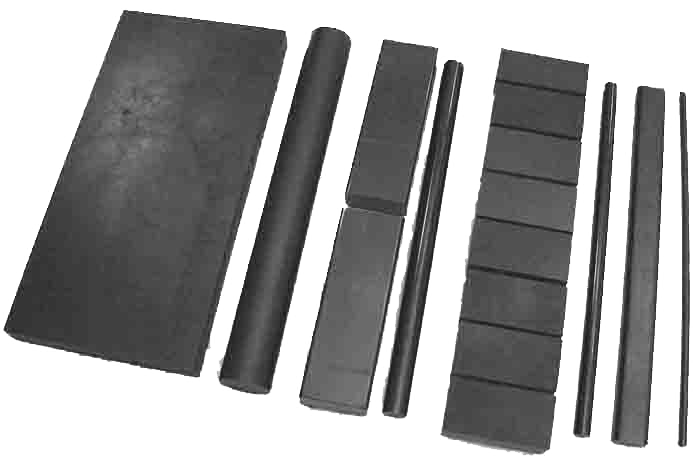

Retainer Part # Description
UT-0500-0500E 30002XX 1/2" x 1/2" Die Pad
UT-01-0500 40811XX* 1" x 1/2" Die Pad
UT-01-0500 41112XX* 1" x 3/4" Die Pad
UT-01-0500 40101XX* 1/4" Die Pad Cushion
UT-1500-0750E 30801XX 1-1/2" x 3/4" Die Pad
UT-02-0750 41121XX* 2" x 3/4" Die Pad
UT-02-0750 41222XX* 2" x 1" Die Pad
UT-02-0750 40201XX* 1/2" Die Pad Cushion
UT-03-1000 41231XX* 3" x 1" Die Pad
UT-03-1000 41332XX* 3" x 1-1/4" Die Pad
UT-03-1000 40301XX* 3/4" Die Pad Cushion
UT-06-1000 41261XX* 6" x 1" Die Pad
UT-06-1000 41362XX* 6" x 1-1/4" Die Pad
UT-06-1000 41463XX* 6" x 1-1/2" Die Pad
UT-06-1000 40601XX* 1-1/2" Die Pad Cushion
UT-12-2000 412121XX* 12" x 2" Die Pad
UT-12-2000 40401XX* 3" Die Pad Cushion
*Replace XX with Tool-A-Thane Grade numbers
UT-15 = 15 UT-25 = 25 UT-35 = 35 UT-75 = 75

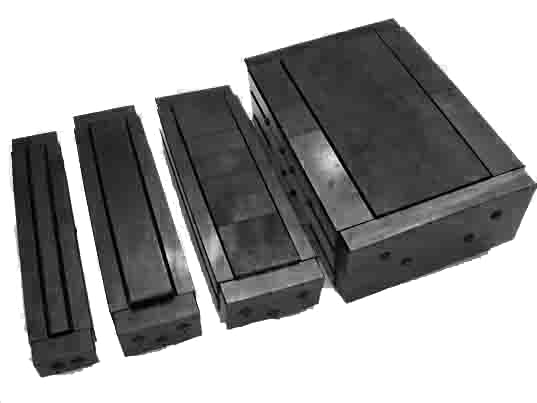

Retainer Part # Description
UT-01-0500 9001405 1" x 1/2" Retainer(12")
UT-01-0500 9001705 1" X 1/2" End Cap
UT-02-0750 9002405 2" x 3/4" Retainer(12")
UT-02-0750 9002705 2" x 3/4" End Cap
UT-03-1000 9003205 3" x 1" Retainer(12")
UT-03-1000 9003505 3" x 1" End Cap
UT-06-1000 9006005 6" x 1" Retainer(6")
UT-06-1000 9006705 6" x 1" End Cap
UT-12-2000 9012005 12" x 2" Retainer(6")
UT-12-2000 9012505 12" x 2" End Cap
ALL 9001900 Threaded Brass Inserts
All 9001901 Cap Screws x 3/8"
All 9001902 Cap Screws x 1-1/2"
All 9001903 Washers
